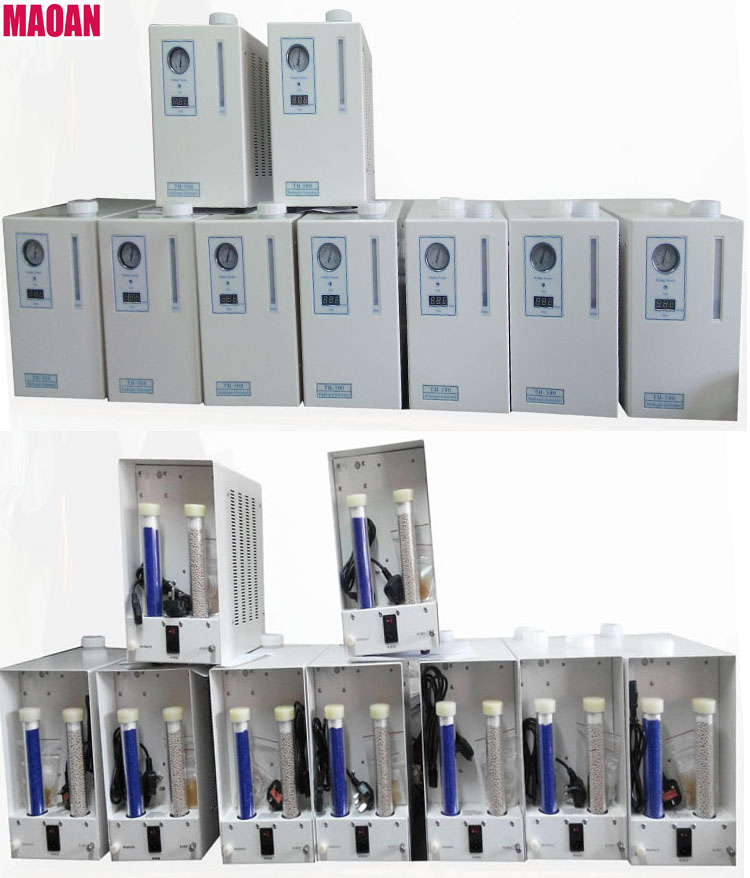

TH-300/500 H2 Generator

Time：2012-12-13 9:20:8    Hits：

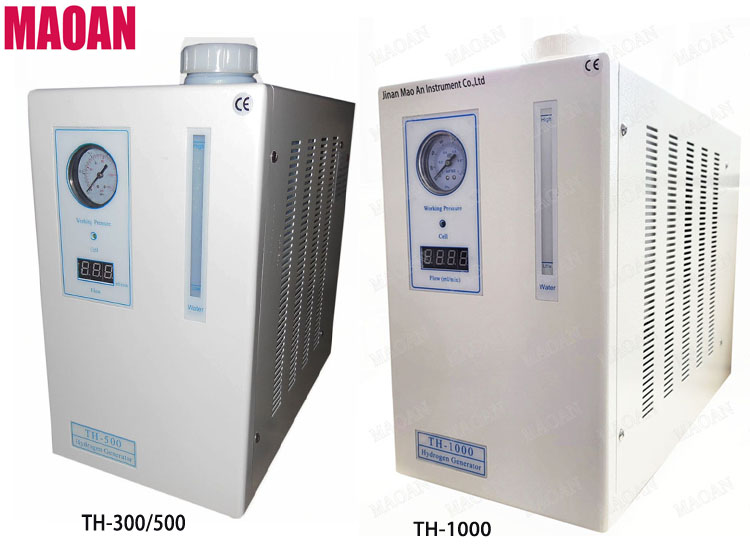

TH-300/500 H2 Generator

Introduction:

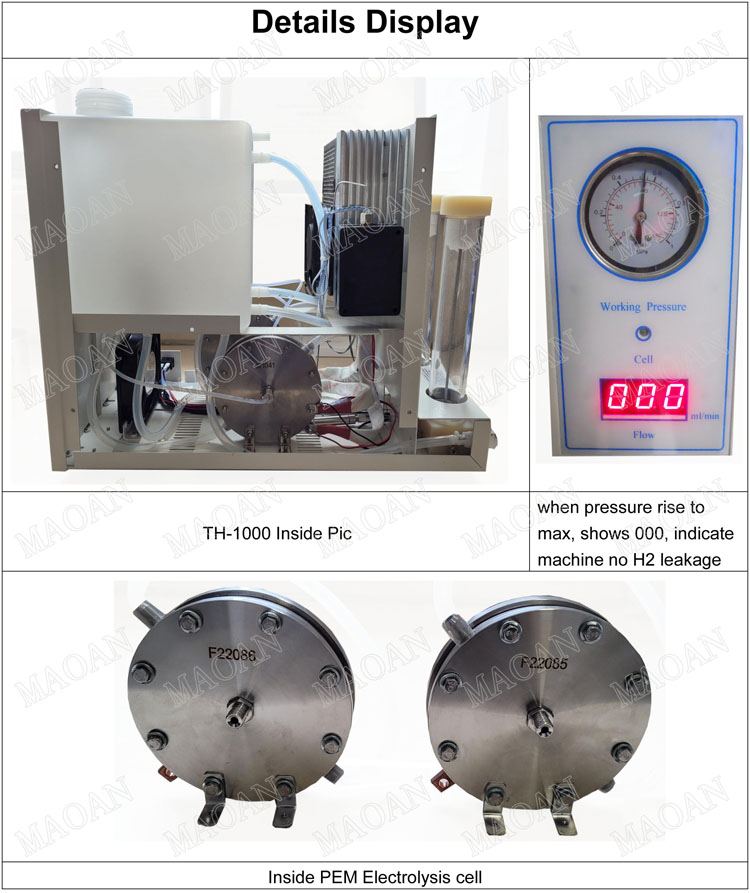

TH-300/500/1000 pure hydrogen generator is SPE/PEM Technology. PEM full name is Proton Exchange Membrane. Also called SPE technology ( solid polymer electrolyte). Only electrolysis pure water( no need to add alkaline) to produce high purity hydrogen. It is world advance technology which can replace the hydrogen gas cylinder. Our machine is safe, high conversion efficiency and continuously gas generation.

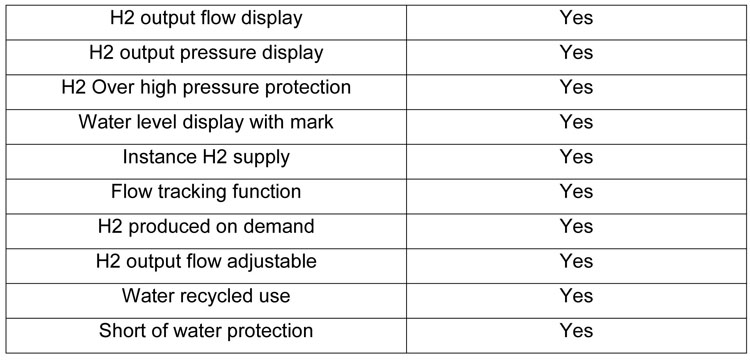

H2 flow rate from 0--1000ml/min, H2 output purity reaches 99.999%, standard machines H2 output pressure is 0--0.4MPa, higher pressure machine up to 1MPa. Output pressure is very stable. No fluctuation. Machines have: H2 output flow rate display, H2 output pressure display, Water level display, over high pressure safety protection etc.

Technical Data:

Model

TH-300

TH-500

TH-1000

H2 Output Flow

 0--300ml/min

0--500ml/min

0--1000ml/min

H2 Output Purity

99.999%

99.999%

99.999%

H2 Output pressure

                         Standard: 0-0.4MPa(set at 0.4MPa when delivery)

                                        Higher Pressure:  0.5--1.0MPa

Pressure Stability

 < 0.001MPa

Water Requirement

>2meghom.cm

Input power

220 / 110 ± 15%, 50--60Hz

Power consumption(W)

<150< span="">

<200< span="">

<400< span="">

Size

400*360*220mm

500*360*220mm

Net Weight

14kgs

16kgs

20kgs
