HX-3000 large hydrogen inhalation machine

Time：2023-10-23 11:6:27    Hits：

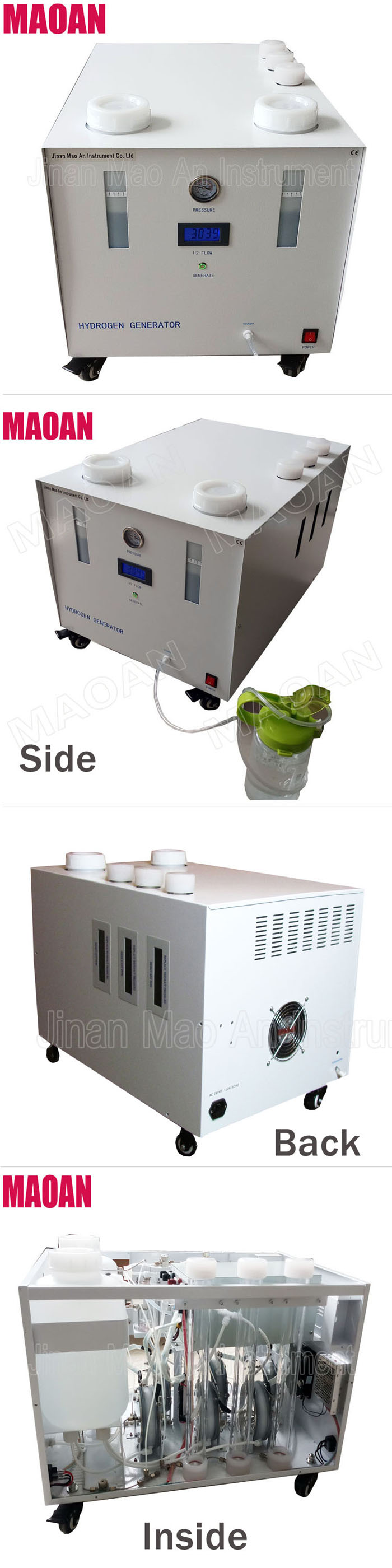

HX-3000 large hydrogen inhalation machine

Machine Introduction:

They are stronger and more economic hydrogen inhalation machines, use world advanced SPE/PEM technology. Through electrolysis of only pure water, it produces 99.99% high purity hydrogen. Hydrogen output flow and pressure are both very stable.

Machine inside core part “ PEM Electrolysis Cell” is produced by us for 30 years. Due to use of only high-quality parts, these durable machines will continue to produce hydrogen for 5--10 trouble-free year.

Whole machine outside is made iron, which is more stronger and durable to be used. The unit has H2 output flow rate display, water level display. Hydrogen and oxygen output flow are fixed. We can produce only pure hydrogen machine or hydrogen and oxygen two separate ports machine. Oxygen flow rate is half of hydrogen flow.

Model

HX-3000

H2 Flow ( ml/min,flow fixed )

3000

O2 Flow(ml/min, flow fixed)

1500

H2 Output Purity

                                    99.99%

H2 Output Pressure

         About 0.2MPa ( Under Stable Pressure )

Input Power ( W/hr )

<1400< span="">

Power& Voltage

AC 220±10% or 110±10%, 50--60Hz

Inside Water Tank Capacity

10L

Water Consumption

 7--10 days add water

Water Requirement

 De-ionized water,Electrical resistivity> 2Megohm/cm

Equipment Weigh

50kgs

Machine Size(L*W*H)

                         67*46*45cm, Plywood
